Rigid Vacuum Table Automatic ATC CNC Router With 8 Tools Steel Tube Frame

Name: Rigid Vacuum Table Automatic ATC CNC Router With 8 Tools Steel Tube Frame
Brand: BLUE ELEPHANT
Price: 1 USD

Quality Rigid Vacuum Table Automatic ATC CNC Router With 8 Tools Steel Tube Frame wholesale

Brand Name : BLUE ELEPHANT

Model Number : ELE1325ATC

Certification : CE ISO9001

Place of Origin : Shandong,China

MOQ : 1 set

Price : US $13,999 - 24,999 / Set

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 200 Set/Sets per Month

Delivery Time : 15 working days

Packaging Details : 1. Outside package: Standard marine export plywood cases for cnc woodworking machine . 2. Inner package: Stretch film and plastic film for humidity. We can package according to your request

Working area : 1300*2500*200mm

Spindle : Italy HSD ATC air cooling spindle

Spindle power : 9kw

Spindle speed : 0-24000rpm

Control system : Taiwan SYNTEC control system

Drive Motors : Japan YASKAWA servo motor and driver

Working Voltage : AC380V/50/60Hz,3PH (Option: 220V)

Table Surface : Vacuum &T-slot Table

Contact Now

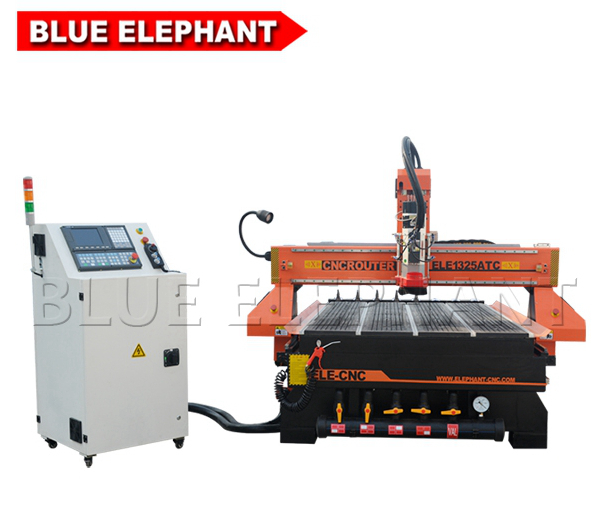

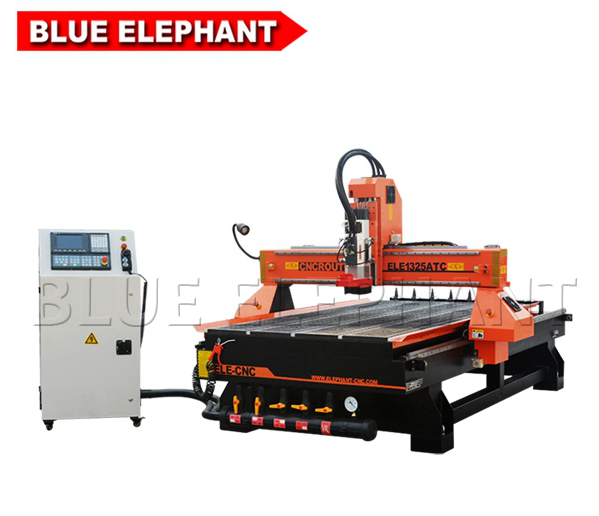

ELE 1325 ATC automatic 3d wood carving cnc router for sale with hsd air cooling spindle and 8 tools

Features:

1. High-performance machine with extraordinary Value,but at a very economical price ,with linear tool changer,constructed with world-class components ,consistent high performance.

2. Featuring Italian high frequency air-cooling electronic spindle and world-class servo motor and driving system.

3. Rigid vacuum table with grids and T-slots, maximize the vacuum hold-down power and also enables you to clamp the workpiece in place.

Standard Configurations:

Welded steel structure
Vacuum & T-slot working table
Italy HSD ATC Air cooling spindle
Z axis with Taiwan TBI Ball screw transmission
X,Y axis with high precision helical rack gear transmission
X,Y,Z axis with Taiwan PMI/HIWIN Linear Guide
Taiwan SYNTEC control system
11kw Taiwan Delta inverter ( TOP Inverter brand all over the world)
Japan YASKAWA servo motor and driver
Tool calibration sensor
Oil lubrication system
Switch: Japanese OMRON Switch

Technical Parameters:

Number	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum &T-slot Table
6	Frame	steel tube frame
7	X, Y Structure	Rack and Pinion Drive, HIWIN Rail Linear Bearings
8	Z Structure	Ball screw and Hiwin Rail Linear Bearings
9	Max. Power Consumption	2.0KW
10	Max. Rapid Travel Rate	45000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9KW Italy HSD ATC air cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Japan YASKAWA servo motor and driver
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
16	Command Language	G Code
17	Operating System	Taiwan SYNTEC control system (Options: Ncstudio /German SIEMENS)
18	Computer Interface	USB
19	Flash Memory	512M(U Disk)
20	Collet	ER32(ISO30)
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 Software, (Option: Artcam Software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%

Application

Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Packaging & Shipping
1. Outside Package:Standard export wooden case .
2. Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Our Service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered, operation disk/CD was included.

Please contact us ,

So we can help you select the right system to meet your needs and fit your budget !
