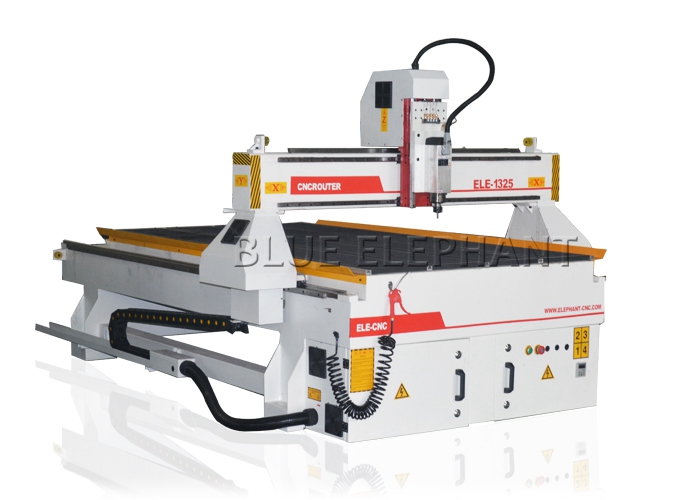

The features of wood cnc router:
1 . ELE-1325 is an economic processing center, with a row of knife. It is equipped with leading
international components.
2 . The work table is international leading vacuum adsorption. It is made from bakelite with
high-strength, vacuum adsorption. It can adsorb different size materials.
3 . Optional wheels help move the machine,more convenient. Optional air gun help clean the
worktable.
4 . With DSP control system, It can support offline operation.
5 . HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime
is 10 times longer than common rail way.
6 . Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,
has after-sale service all over the world. Matched with Taiwan DELTA inverter.
7 . Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer
lifetime,and it makes the machine more stable.
8 . Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we
can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.
The applications of wood cnc router:
1) . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,
composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2) . Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word
making,blaster molding, and other advertising materials derivatives making.
3) . Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4) . Relief Sculpture and 3D Engraving
5) . Cylindrical object
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum&T-slot Table |
| 6 | Frame | Welded Structure,heavy duty T-structure |
| 7 | X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
| 8 | Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
| 9 | Max. Power Consumption | 2.0KW |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 3KW HSD air cooling spindle(water cooling spindle for optional) |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Delta servo motor (optional) |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP (Options: Ncstudio /Mach3 Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
Our Services
1 , before-sale,we will try to know your requirement about our cnc router specification
and what kind of work you will do .then we will offer our best solution for your requirement.
then it can confirm each customer can get their real needed machine.
2 . during production: we will send photos of machines during making. so customers can know more details
about the procession of making their machines. and give them suggestions.
3 . before shipping, take delivery photo , Machine will be adjusted before it is delivered.
4 . after shipping: we will check when the machine arrive your sea port and approximate date of arrival.
so customers can know when it will arrive and make enough preparation.
5 . after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing.
6 . about teaching: there are some manual and video about how to use machine , if you have question about it.
we will have professional technicist to help you install and teach how to use through skype ,calling, video or mail.
7 . about warranty: we offer 1 year warranty for whole machine and half year warranty for spindle. if any parts of our machine is broken. we will replace it for free.
8 . service in longterm : we hope every customer can use our machine easily and have a fun of it.if you
have any problems of machine in 2 or 3 , 5 years , you can contact us . we will always here waiting for you.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and laser
cutting engraving machine .
We have our R & D department , Quality control department , and after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model ,
Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !
Just looking forward to service every customer, like you .
