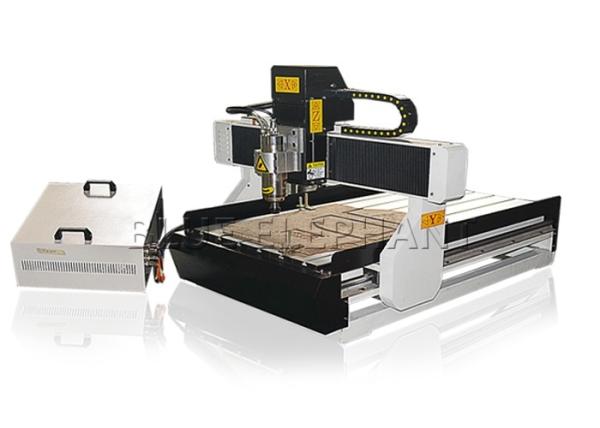

Popular DSP control system , Separate motor and driver for each axis , High precision 6090 CNC Wood Turning Machine
The specifications:
| Model | ELE-6090 |
| X,Y,Z travel( mm) | 600x900x85 |
| Spindle power | 1.5kw water cooling spindle |
| Spindle rotation speed | 0-24000RPM |
| Max. Rapid Travel Rate | 9000mm/min |
| Max. Working Speed | 6000mm/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy | ±0.01mm |
| Table Surface | T-slot working table |
| Transmission | Taiwan TBI Ball Screw |
| Drive Motors | stepper |
| Controlling system | DSP |
| Working Voltage | 220V,1 PH,50/60HZ |
The features:
1) . Adopt constant power water-cooled frequency spindle,high speed, low noise and long life.
2) . It is very suitable for CNC hobby friends,small engraving shop and factories as well.
3) . Popular DSP control system is very easy for every buyer and beginner,no need to connect a computer.
4) . Even small, we still use 1.5kw spindle to give it enough power. Ball screw gives it good resolution and less noise.
5) . Separate motor and driver for each axis,making the machine works more reliable.
The applications:
Mini CNC Router has a wide range of application, such as advertising field, seal field,packing field, panel making field,
decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field.
it is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet,scagliola, PCB, granite, stone, steel and etc.
Our Service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts
have any problems, we can change the old machine parts to new ones free, but you should pay all
the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered , operation disk/CD was included.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and laser
cutting engraving machine .
We have our R & D department , Quality control department , and after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model ,
Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !
Just looking forward to service every customer, like you .
